D165 Steam Engine
€373.80
2-4 Tag(e)
Lagermenge: 9
5
Product information "D165 Steam Engine"

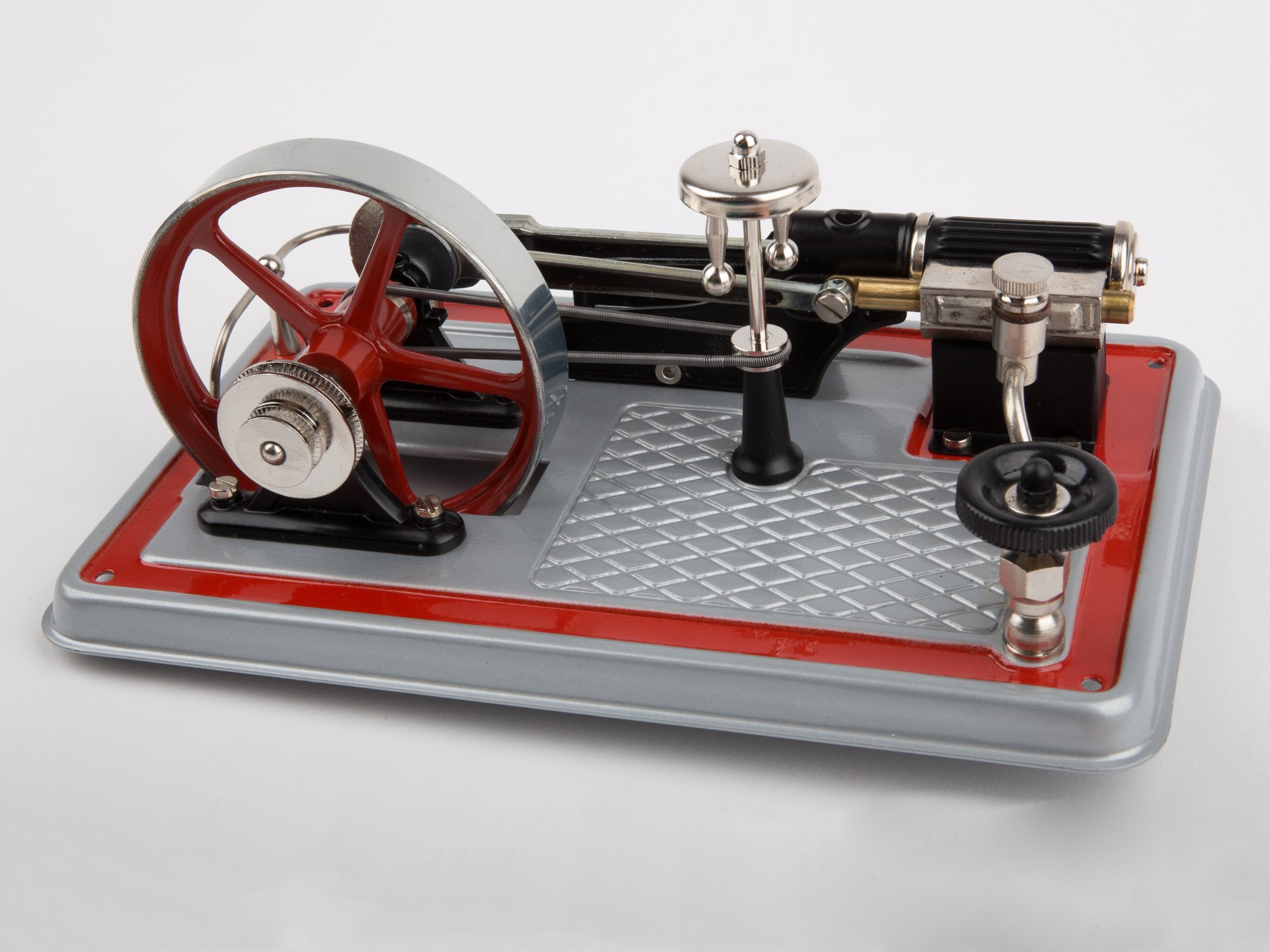

Wilesco D165 Steam Engine
This assembly D165 can be the start of a small model plate. The package contains the steam engine D16, a large countershaft and a drilling machine. Four additional drive models can be connected to this countershaft.
Login
- Base dimension: 310 x 250 mm
- Height: 280 mm
- weight: 2,62 kg
- Heating with dry fuel
Accessories
Wilesco Drive Belts in a Bag These drive belts are required to operate our drive models. One bag contains five drive spirals. The spirals are made of spring wire and can be closed into a belt by twisting them together. The drive belts come in widths of 2 mm and 2.5 mm. The shorter drive spirals are 26 cm long. However, drive spirals 50 cm long are more suitable for simultaneous operation of several Wilesco models, allowing for a more flexible setup.
Witabs Dry Fuel - The High Quality Dry Fuel for Your Steam Engine Witabs dry fuel from Wilesco is needed for optimal heating of steam engines. It is a special in-house development, offers the following advantages over the dry fuel Esbit: Higher efficiency: Witabs dry fuel offers a particularly long burning time of approximately 10 minutes per tablet. Witabs burn almost residue-free - this protects your steam engine Witabs dry fuel is particularly easy to handle A box of dry fuel contains 12 tablets. Our Witabs ignite quickly as soon as they come into contact with a flame. Please ensure proper storage to maintain product properties.
Wilesco Steam Engine Oil - Perfectly Matched for Your Wilesco Steam Engine Everyone who loves steam engines knows that a steam engine cannot run without steam engine oil. Regular and sufficient oiling with our original Wilesco steam engine oil ensures a smooth operation of your power engine and a long lifespan of the product you have purchased. The oil is used for lubricating pistons and cylinders as well as all other bearings. It is important not to use just any oil, because the correct consistency of the oil is crucial. Depending on the type of oil used, the oil may become hard, too thick or too thin. Therefore, Wilesco offers its special steam engine oil, whose composition is perfectly matched to all Wilesco steam engines. With our steam engine oil, you can be sure you are making the right choice!
Spare Parts
Ölerschraube, vernickelt M6 für die Dampfmaschinen D16, D161, D18, D20, D24, D48, D52.
Öler, Dampfstrahlöler mit Rohr/Schraube D16, D161, D18.
Spring‑Loaded Safety Valve M6 x 0.75 Fine Thread (from 1990), Nickel‑Plated High‑quality nickel‑plated safety valve for WILESCO steam engines. Provides reliable overpressure protection with a durable spring mechanism. Suitable for all WILESCO boilers from 1990 onwards with M6 x 0.75 fine thread. Thread: M6 x 0.75 (fine thread) Finish: nickel‑plated for corrosion resistance Compatibility: all boilers from 1990+ with M6 x 0.75 Note for older machines: For units built before 1990 there is no compatible safety valve – a new boiler must be installed. Genuine WILESCO spare part – Made in Germany
Nickel steam whistle with chain pull and M6 thread for the steam engines D12 (up to year of construction 2014), D16, D161, D18, D20, D22, D24, T90. Note: When using the steam whistles with chain pull, a spring safety valve must be installed on the boiler.
Gasket Assortment M3-M6: This assortment includes a variety of high-quality gaskets in various sizes from M3 to M6, suitable for all Wilesco steam engines. These gaskets provide reliable sealing for a wide range of applications and threads. They are ideal for use in steam engines, mechanical devices, and other industrial applications to prevent leakage of steam and oil. With a wide selection of sizes, you are equipped for various project requirements.
Wasserstandsglas mit 4 mm Stärke und Durchmesser 37 mm, mit Schrauben, Muttern und Dichtungen (Fertigung ab 1976) für die Dampfmaschinen: D12 (bis 2014) D14 D141 D15 D16 D161 D18 D20 D22 D24 D48 T90
Ersatz-Metallring für das Wasserstandsglas aus Nickel Ø 37 mm für die Dampfmaschinen D12 (bis 2014), D14, D141, D16, D161, D18, D20, D24, D48.
Nickel burner slide lenght 100 mm for the stationary steam engines D12 (up to year of construction 2014), D14, D141, D145, D16, D161.
Guide rail for burner slide made of nickel, suitable for models D12 (up to 2014), D14, D141, D16, and D161. This high-quality guide rail ensures smooth movement of the burner slide in your steam engines. Made of nickel for durability and reliability. Whether for repairs or as a spare part, this guide rail is an optimal choice for your steam engines.
Dampfabsperrventil/Ablassventil ohne Ventilkörper-Unterteil Nickel D16, D18, D20, D22, D24, T90
Handrad für Wilesco Dampfmaschinen D16, D18, D20, D21, D24, D161, D165, D202, D222, D242, D430, T125
Dampfabsperrventil/Ablassventil mit Ventilkörper-Unterteil und Bundmutter/Lötring Nickel D16, D18, D20, D24, T90
Dampfabsperrventil-Unterteil/Ventilkörper-Unterteil Nickel D16, D18, D20, D24, T90
(1 Beutel = 5 Stück)Länge ca. 130 mm
Madenschrauben für Schnurlaufrollen(1 Beutel = 10 Stück) für D12, D14, D141, D15, D16, D161, D20, D21, D22, D24, D52, D305, D365, D395, D366, D396, D398, D405, D495, D406, D496, D409, D499, D430
Double-grooved pulley made of nickel with a diameter of 25 mm, suitable for the following drive models: M55 and M56, as well as the stationary steam engines: D12, D14, D141, D16, D18, D20, D22, D24, and D455. This high-quality pulley ensures smooth operation and efficient power transmission in your steam engines and drive models. With precise manufacturing and durable quality, it is ideal for repairs or replacement in your models.
Replacement Boiler Set for WILESCO D12, D14, D141, D16, D161 and D165 Replace the boiler of your WILESCO D12 (up to 2014), D14, D141, D16, D161 (up to 2018) and D165 with this high-quality replacement boiler set for optimal performance and safety. The set includes a boiler with spring-loaded safety valve, sight glass, and fastening clamp. These premium components ensure a reliable steam supply and contribute to the long service life of your Wilesco steam engine. Fits WILESCO D12, D14, D141, D16, D161 and D165 Includes safety valve, sight glass, and fastening clamp Genuine WILESCO spare part – Made in Germany

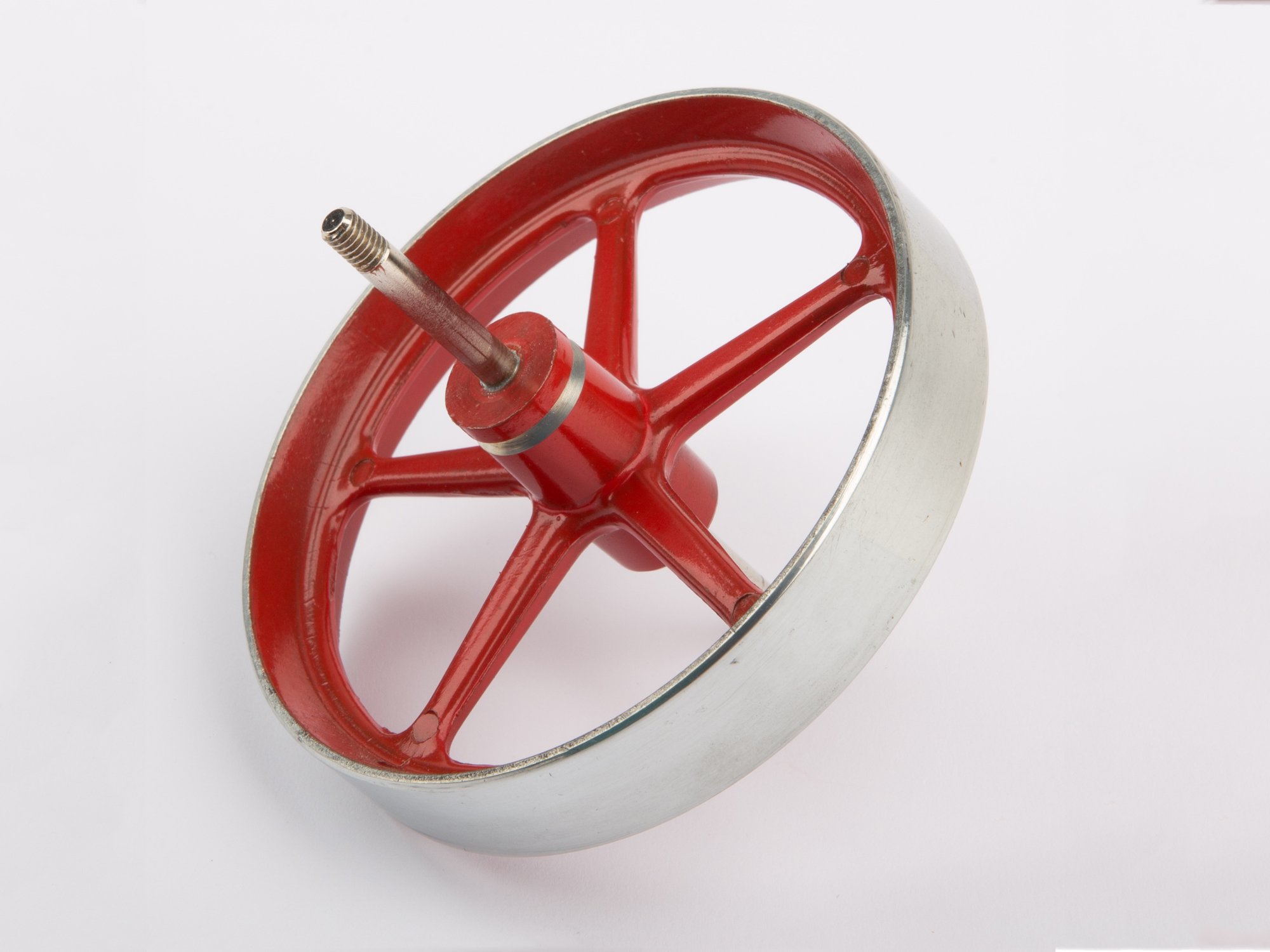

Ersatz Schwungrad mit 80 mm Durchmesser und Achse in rot/nickel für die stationären Dampfmaschinen D16, D161.
Zylinderverkleidung D10, D14, D141, D16, D161, D165, D22, D365, D395, D368, D398, D375, D405, D495, D415, D455, D310
Slide valve connecting rod D16, D18, D20, D21, D24
This 13mm diameter piston is specifically designed for steam engines such as D16, D161, D18, D20, D21, and D24. Crafted from high-quality materials, it ensures smooth performance and durability for your machines. Experience optimal performance of your steam engine with this replacement part.
This replacement piston connecting rod with screw is designed for the stationary steam engines D16, D161, D20, and D24. Crafted from high-quality materials, it ensures smooth performance and durability of your machines. Experience reliable functionality and optimal performance of your steam engines with this replacement part.
Schieberpleuelstange mit Schraube für die stationären Dampfmaschienen: D16, D161, D20, D24
Ersatz Kurbelscheibe mit Bolzenschraube für die stationären Dampfmaschinen D16 (bis 2001 und ab 2006), D20, D24.

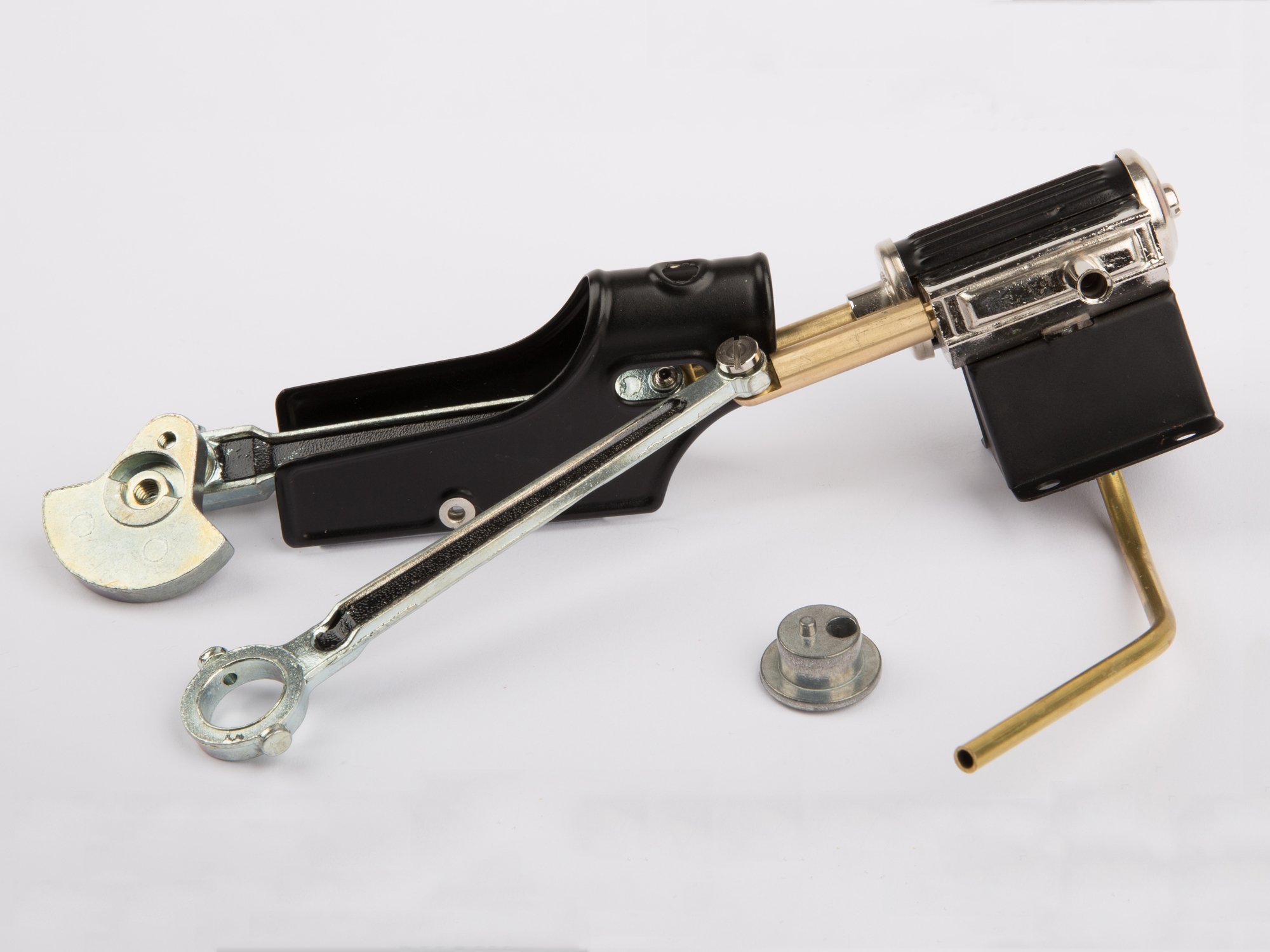

D16 / D161 Complete Power Unit (2005–2018) – Genuine WILESCO Spare Part The complete power unit for the WILESCO D16 and D161 models (model years 2005 to 2018) is a precise replacement for the entire drive assembly. Ideal for repairs or full replacement of a worn unit, restoring your steam engine to smooth and reliable operation. Fits WILESCO D16 and D161 (2005–2018) Pre-assembled – quick and easy installation Genuine part – Made in Germany Smooth running and dependable performance Scope of Delivery Complete D16/D161 power unit (2005–2018) supplied as a pre-assembled assembly (delivered as shown in the product image). Notes Compatible only with D16/D161 models from 2005–2018. Please check model designation and year before ordering.

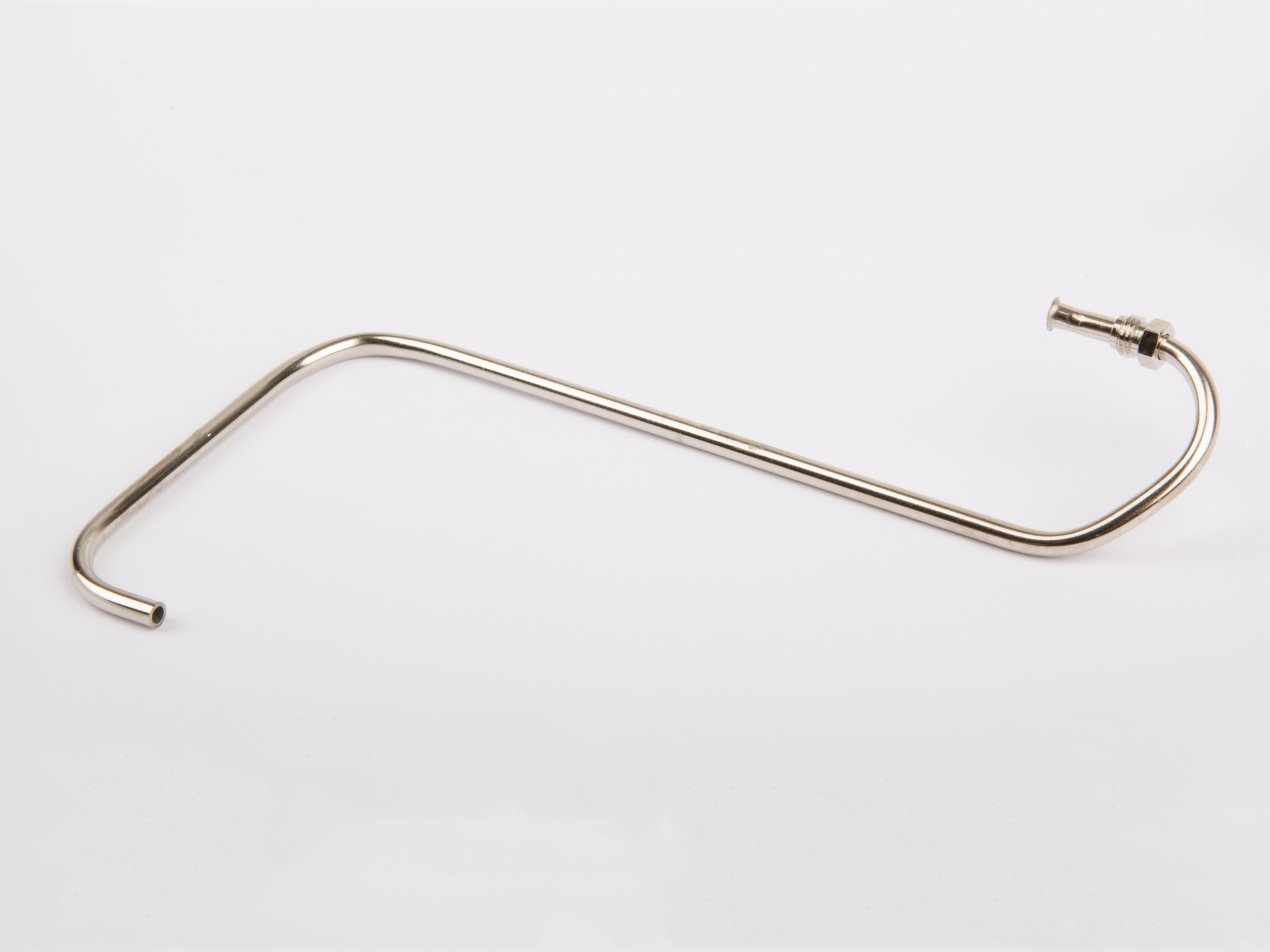

Spare part steam pipe for stationary steam engine D16: This high-quality spare part is specifically designed for the stationary steam engine D16. Made of robust material, the steam pipe offers excellent durability and corrosion resistance for reliable performance. With precise fit and easy installation, it ensures smooth operation of your steam engine. The steam pipe is the ideal choice for repairs or as a replacement part to maintain the optimal performance of your machine.
Complete accessories bag for the stationary steam engines D16 (until 2000 + from 2006), D161 (until 2018) and D165Contents: Chimney Burner slide Funnel Steam whistle with chain hoist
Handrail support for models D18, D161 (from 2019), D20, D22, D24, D455, and T90, nickel-plated, with nut. This nickel-plated handrail support is specifically designed for the mentioned steam engines and provides a secure mounting for handrails and similar structures. Equipped with a nut for easy installation, it ensures stability and reliability. Made of high-quality material and featuring a robust design, this handrail support is an ideal addition to your steam engine.
Large eccentric disk for steam engines D16, D161, D18, D20, D21, D24, D202, and D242. This high-quality eccentric disk is specifically designed for efficient power transmission in your steam engines. With its robust design and precise manufacturing, it ensures smooth operation and high performance. Whether for repairs or as a spare part, this eccentric disk is a reliable choice for your steam engines.
